Telemetry · Data transmission module

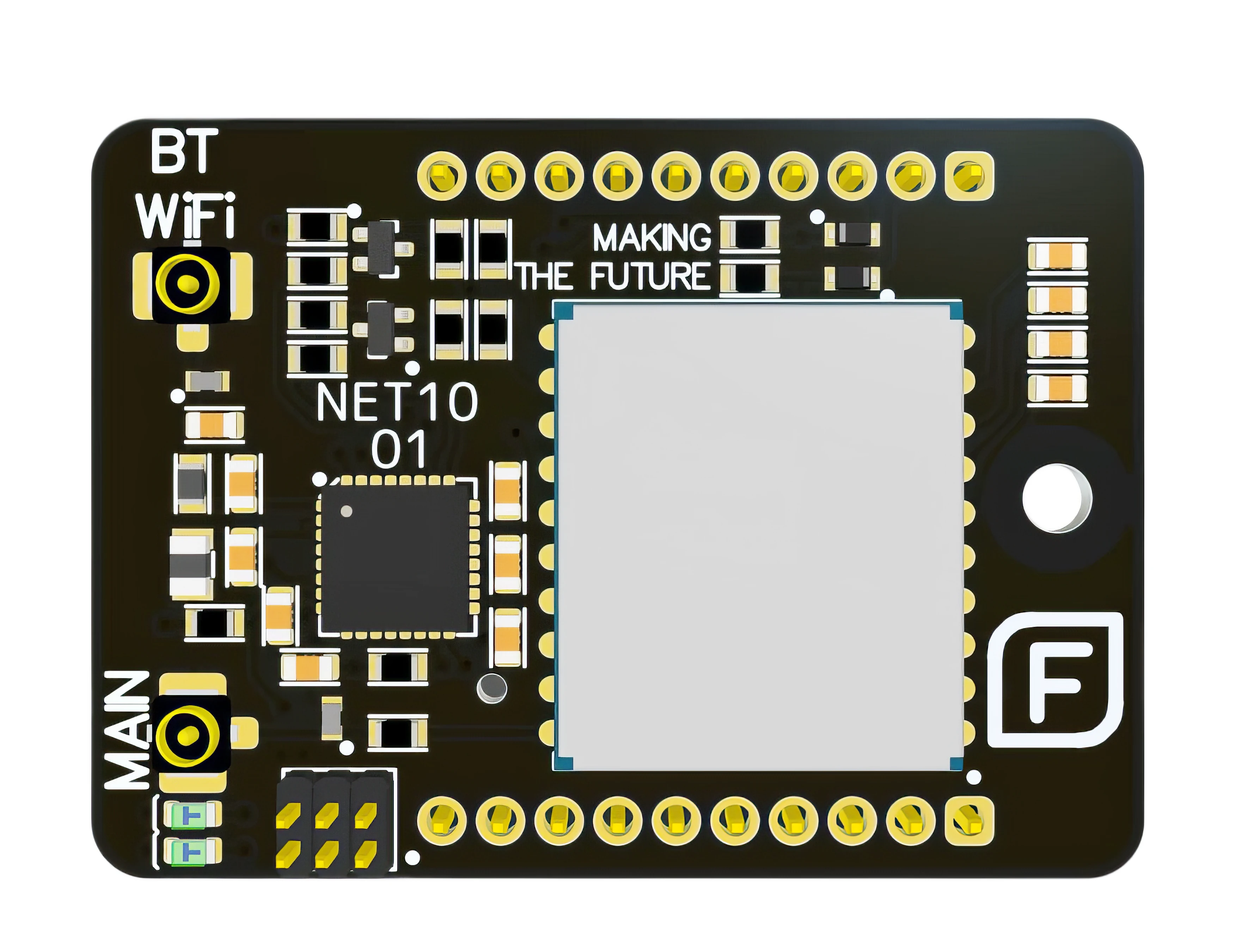

NET10
NET10 is a data transmission module that sends data from the battery management system to a cloud server over 2G, Wi-Fi, and Bluetooth. It supports a secure MQTT connection over TLS, SNTP time synchronization, and battery management system configuration from a PC.
Connectivity
2G / Wi-Fi / BT
Interface
UART
Power supply
3.3 V
Size
36 × 26 mm
2GWi-FiBluetooth 5.0 LEMQTT/TLSOTA
Key advantages
- Secure MQTT connection over TLS
- SNTP time synchronization
- Battery management system configuration from a PC
- microSIM or eSIM support
Applications
Compatible devices
Technical specifications
| Power | |
| Voltage | 3.3 V |
| Power consumption | 100 mW (max.) |
| Connectivity | |
| 2G | GSM 900/1800 MHz |
| Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz |
| Bluetooth | 5.0 LE |
| Cellular antenna | External IPEX |
| Wi-Fi/Bluetooth antenna | External IPEX |
| SIM | microSIM or eSIM |
| Interfaces | |
| UART | 1 |
| Features | |
| Firmware update | OTA |
| Operating conditions | |
| Operating temperature | -40 °C to +75 °C |
| Storage temperature | -40 °C to +75 °C |
| Operating humidity | 5–95% |
| Ingress protection (IP) rating | IP00 |
| Physical characteristics | |
| Dimensions | 36 × 26 × 11.7 mm |
| Weight | 7 g |
| Compatible devices | |
| Battery management systems | BMS201, BMS211 |
