01
Ready products
Management systems, indicators, current sensors, and telemetry modules for lithium-ion battery systems.
What you getElectronic modules from stock, selection guidance, and integration support for your system.
View catalog BMS and electronic modules for traction battery and energy storage manufacturers
What we do
Three scenarios for your project
We help at different project stages, from selecting a ready module to developing a product for your technical specification.
02
Product customization
We adapt ready modules for voltage, enclosure, interfaces, operating logic, protocols, and operating conditions.
What you getA modified module with agreed changes and documentation.
Customize a module 03
Contract development
We develop electronics: schematics, PCBs, embedded software, prototypes, testing, and preparation for series production.
What you getA working prototype or serial product with documentation, source code, and support.
Request development Who we serve
For battery system manufacturers
We work with teams that need ready electronic modules, project adaptation, or product development from scratch.
01
Traction battery manufacturers
Management systems, indication, telemetry, charger integration, and equipment integration.
Typical requestWe need a 48 V BMS with CAN and support for our charger.
02
OEM special-equipment manufacturers
Floor scrubbers, pallet trucks, robots, forklifts, electric boats, and other traction equipment.
Typical requestWe need to adapt a battery module for our machine and communication protocol.
03
Energy storage integrators
Management systems, monitoring, CAN/RS-485/Ethernet, remote diagnostics, and event logging.
Typical requestWe need battery monitoring, fault logs, and cloud data transfer.
04
Design bureaus and startups
Contract design of circuits, PCBs, embedded software, prototyping, and series support.
Typical requestWe have a specification for an electronic module and need a contractor from schematic to pilot batch.
Products
Ready modules for battery systems
BMS

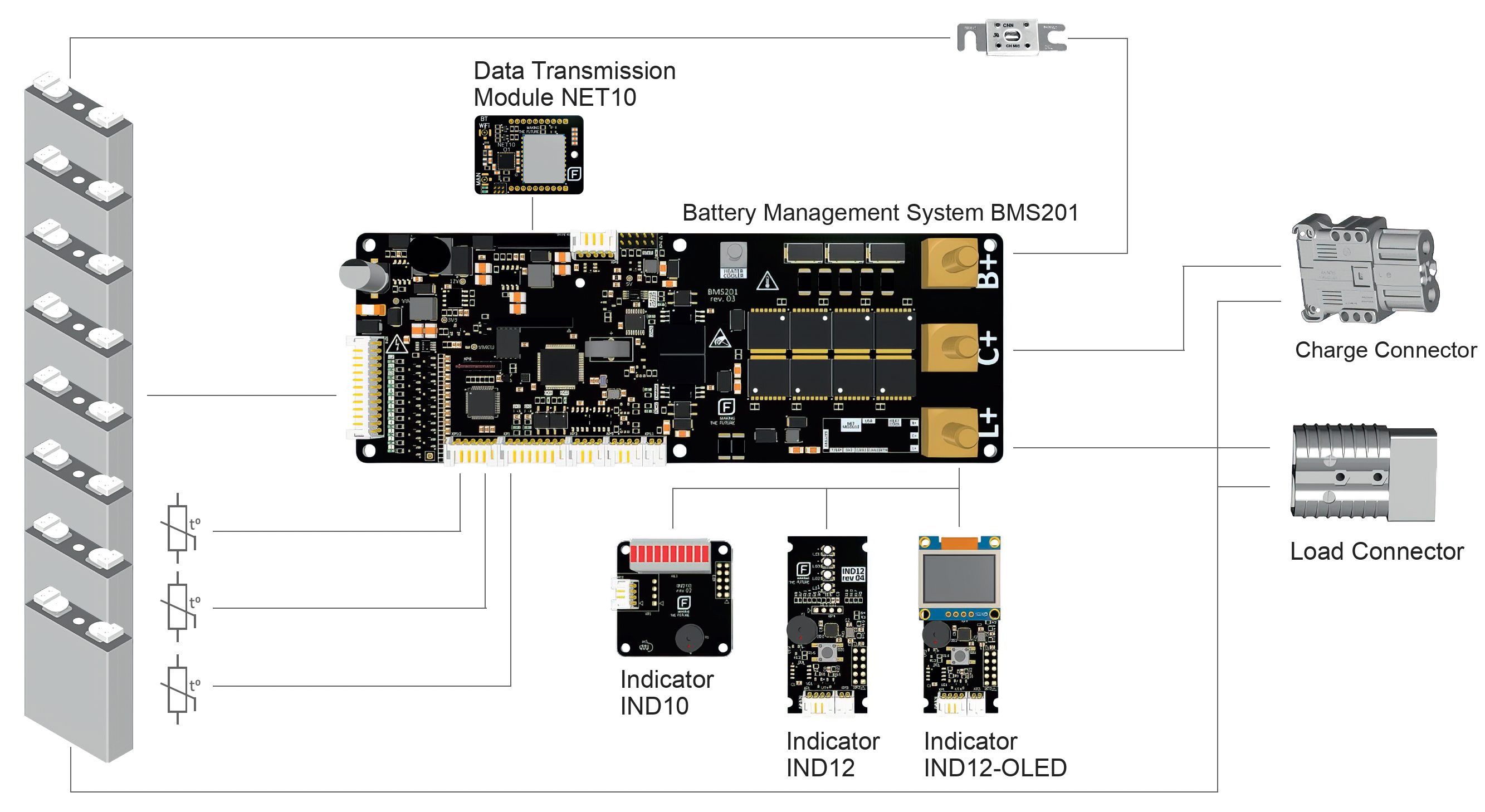

BMS201
Single-board BMSAll-in-one single-board BMS with 100 A MOSFET contactors and current sensing for 24-36 V batteries up to 200 Ah.
Details
BMS
BMS211
Centralized BMSCentralized BMS for 24-80 V batteries with passive balancing and an expanded interface set.
Details
Indication
IND10
CAN indicatorIndication module for battery management systems.
Details
Comparison
BMS201 / BMS211
| Parameter | BMS201 | BMS211 |
|---|---|---|
| Type | Single-board BMS | Centralized BMS |
| Battery voltage | 24 / 36 V | 24 / 36 / 48 / 80 V |
| Cells | 6-12S | 6-16S |
| Contactor | 100 A cont. / 500 A for 1 s | External |
| Current sensor | Integrated shunt | External CAN / Hall |
| Balancing | 85 mA @ 3.4 V | 140 mA @ 3.4 V |
| Interfaces | CAN x2, USB | CAN x2, RS-485, Ethernet, USB |
| Dimensions | 174 x 64 x 19.5 mm | 166.6 x 87.2 x 16.9 mm |
| Details | Details |
Applications
Where our modules work
Warehouse and cleaning equipment, autonomous robots, light electric transport, and energy storage systems.
Floor scrubbers
Electric pallet trucks
Electric forklifts
Autonomous robots
Golf carts
Energy storage systems
Engineering
Development services
01
Product customization
We adapt ready-made BMS boards, indicators, current sensors, and telemetry modules for your battery system, equipment, and communication protocols.
- BMS modification
- Thermal modeling
- Battery pack engineering
- CAN integration
- Telemetry
- Testing
- Integration support
02
Contract electronics development
We develop electronic products to specification: architecture, circuits, PCB, firmware, prototypes, and preparation for serial production.
- Circuit design and PCB
- Embedded firmware
- Embedded Linux systems
- Desktop applications
- Web applications
- Prototyping
- Production preparation
