BControl

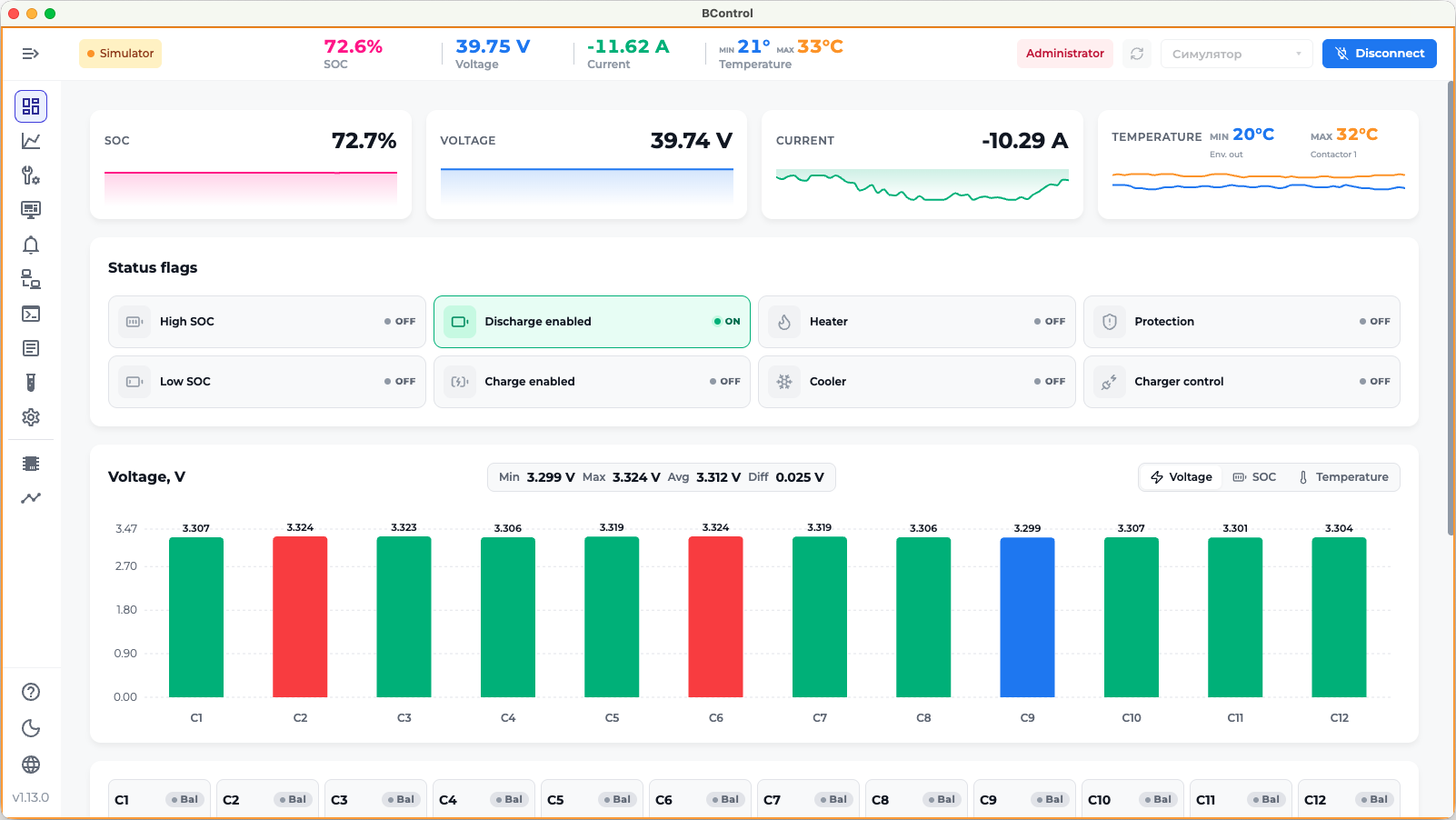

BControl is an application for working with BMS201 and BMS211 battery management systems. It shows voltage, current, temperatures, and the state of every cell in real time, plots charts, reads the event log and data logger records, configures BMS parameters, and updates firmware. For service work, it provides manual control of contactors and outputs, sensor checks, and a command line.
Version 1.12.0 · Windows x64 · 133 MB
SHA-256 a0a498a25149def14e7bcf5a543d298d2996425ee56bf6ce1f55fac267f6c1d2BMSMonitoringConfigurationFirmware
Advantages
Key advantages
- Real-time monitoring of SOC, voltage, current, and temperatures
- Voltage, SOC, temperature, and balancing status for every cell
- Charts for current, voltage, power, temperatures, and humidity
- BMS parameter configuration with import and export
- Device event log with filters and a timeline view
- Firmware updates with package signature verification
- Service mode with manual control of contactors and outputs
- Built-in BMS simulator for working without hardware
Applications
Applications
Battery commissioningBMS configuration for a batteryDiagnostics and troubleshootingFirmware updatesData logger analysisService and maintenance
Compatible devices
Ecosystem
BMS201BMS211
Specification
Technical specifications
| Features | |
| Monitor | SOC, voltage, current, and temperatures, BMS status flags, cell voltage, SOC, and temperature charts, balancing status |
| Charts | Voltage, cell voltages, current, power, temperatures, humidity, and acceleration; adjustable time window, automatic or fixed scale |
| Settings | Basic and advanced views, battery and system profiles, configuration import and export |
| Events | Reads the event log from the device, filters by level, module, and time, table and timeline views |
| Data logger | Loads data logger records and plots them for a selected time range |
| Firmware update | .bupkg packages from a file, the server, or local storage; compatibility, integrity, and signature checks |
| Maintenance | Manual control of contactors, balancing, discrete and power outputs; time sync, restart, and reset |
| Sensor check | Comparison of readings with expected values and tolerances |
| Service tools | Command line, system logs, diagnostics, and a list of nodes on the bus |
| Access modes | Client, Service, Administrator |
| Interface | Dark and light themes, built-in documentation, English and Russian |
| Updates | Automatic check and installation of new versions |
| Connection | |
| Interface | USB, Bluetooth, TCP/IP |
| Working without hardware | Built-in BMS simulator |
| System requirements | |
| Operating system | Windows, Linux |
